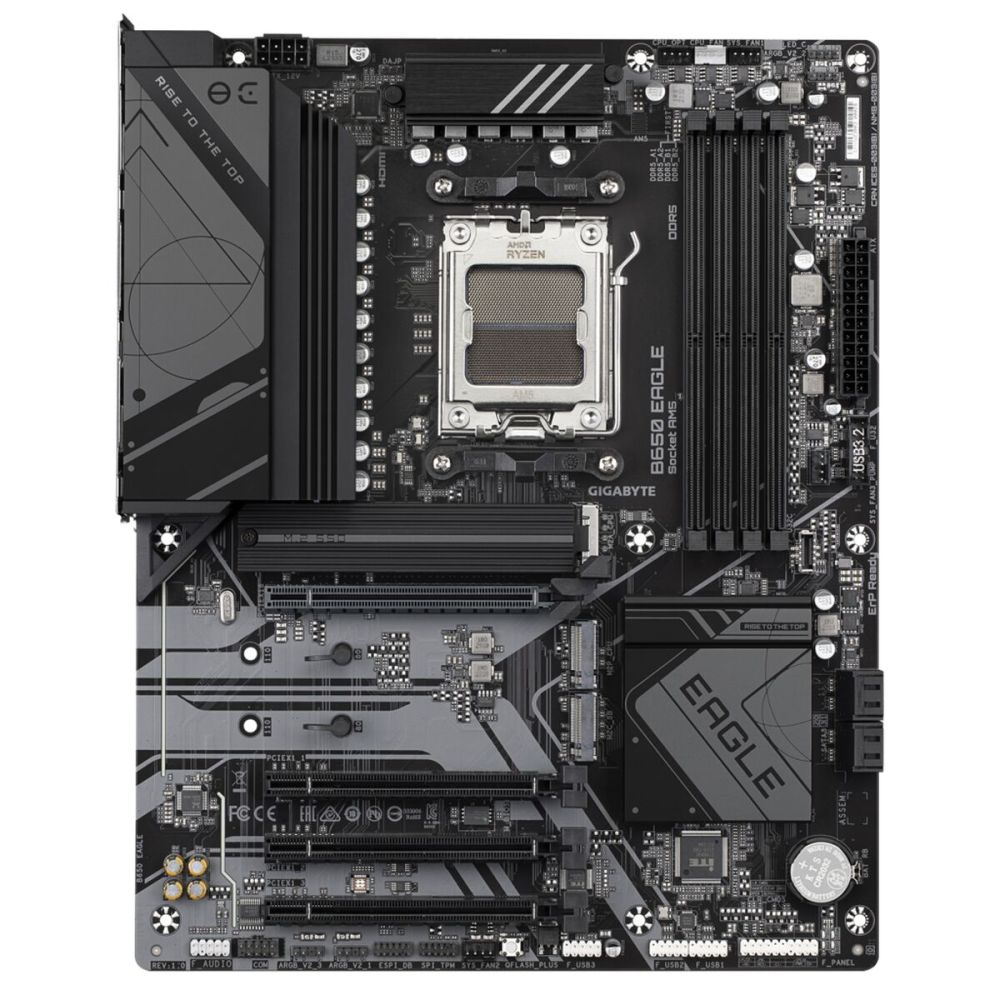

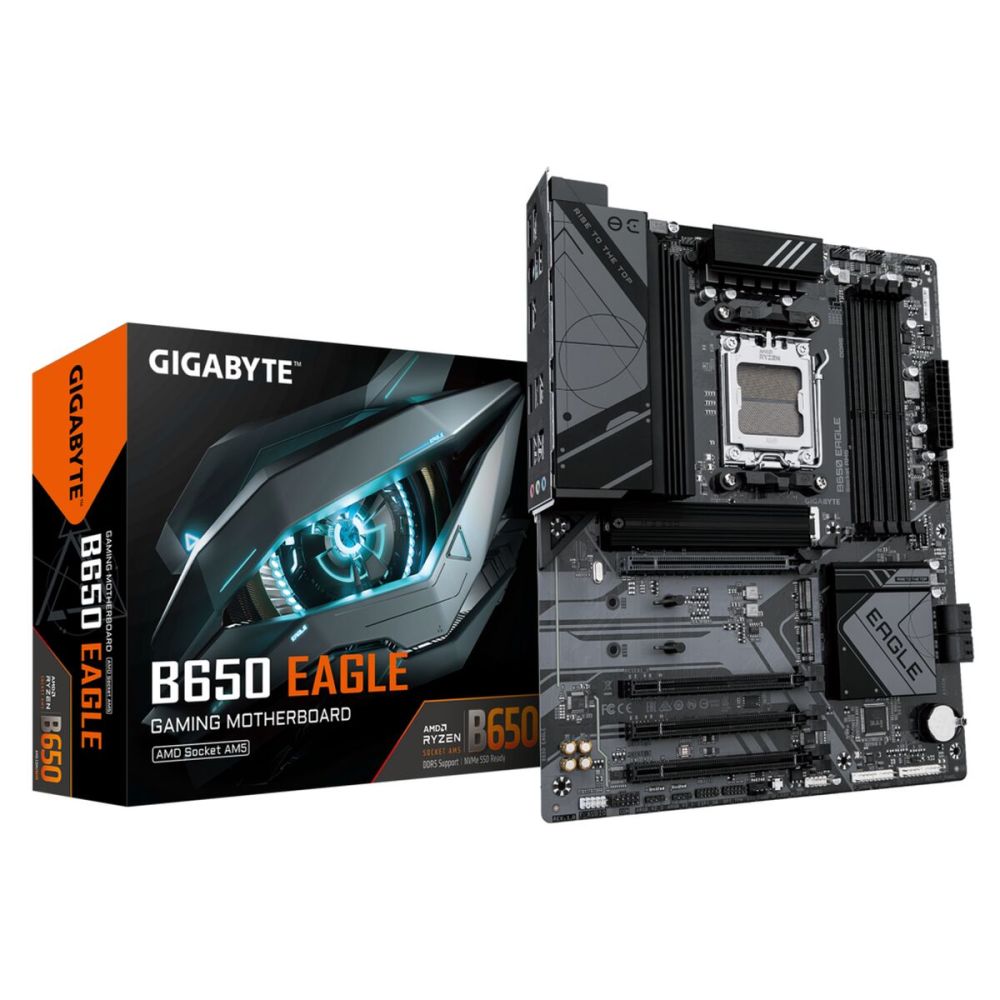

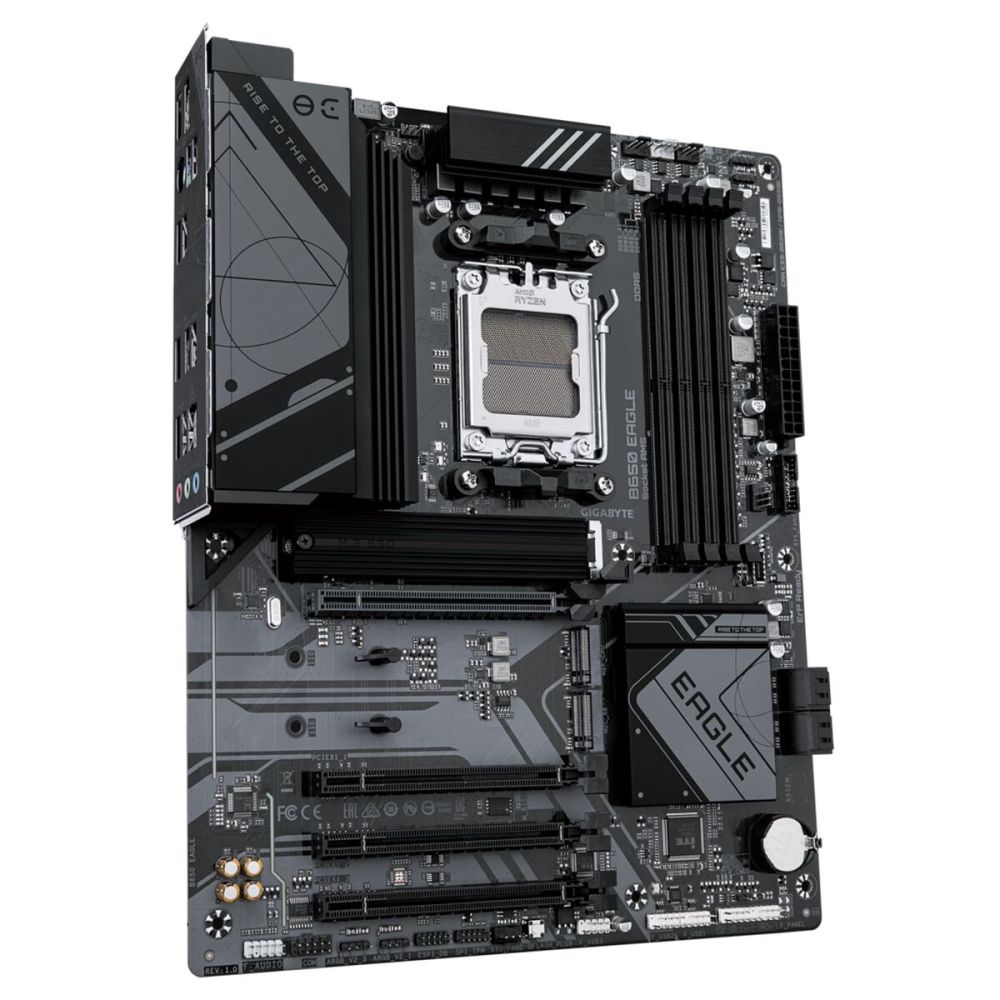

Gigabyte B650 EAGLE DDR5 7600MHz (OC) M.2 HDMI DP 1GbE Lan ATX AM5 Anakart

• AMD Socket AM5: Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
• Eşsiz Performans: 12+2+2 Phases Digital VRM Solution
• Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
• SuperSpeed Storage: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance
• EZ-Latch: PCIe x16 Slot with Quick Release Design
• Fast Networks: GbE LAN

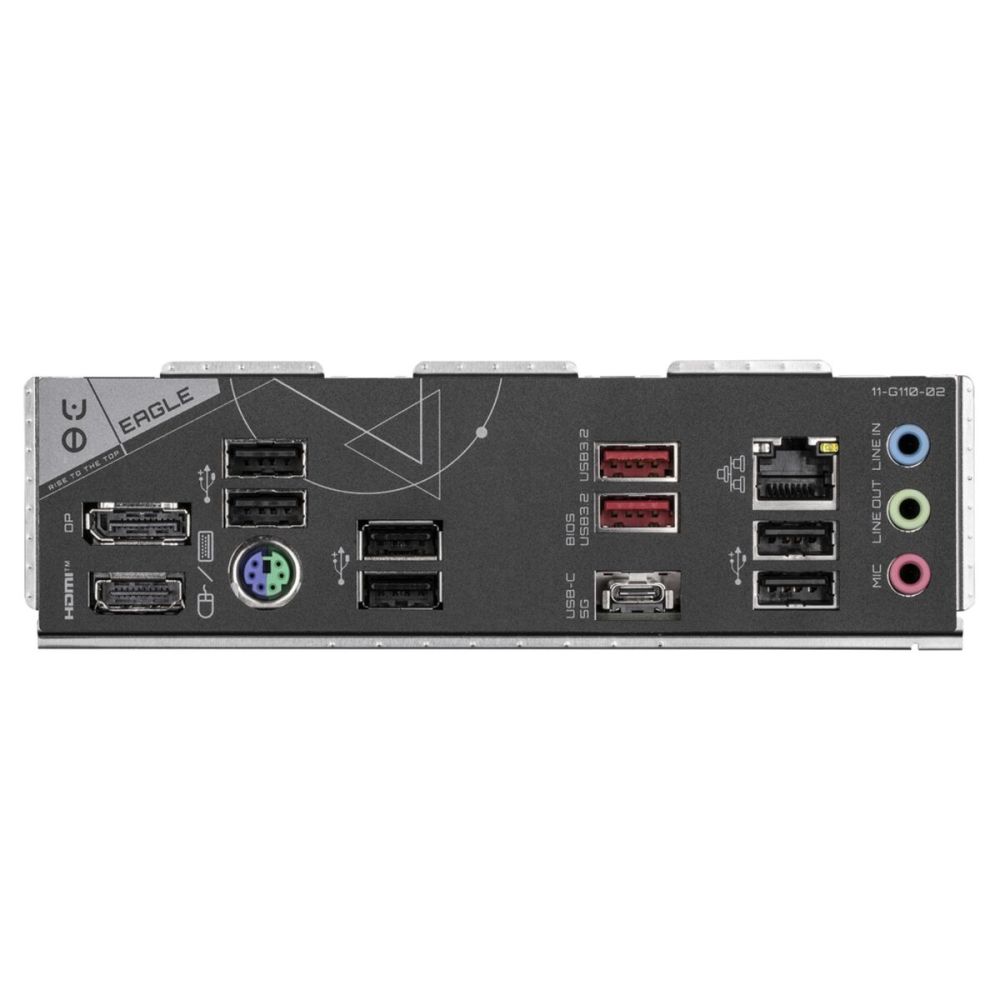

• Extended Connectivity: DP, HDMI, Rear USB® 10Gb/s
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
•


• İşlemci
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors


  (En son CPU destek listesi için GIGABYTE'ın web sitesine gidin)
• Yongaseti
  1. AMD B650

• Bellek
  1. Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

  2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

  3. Çift kanal bellek mimarisi

  4. ECC olmayan DIMM 1Rx8/2Rx8/1Rx16 hafıza modüllerini destekler

  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules


  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
• Dahili Grafik
  Birleşik Grafik İşlemcileri

  1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
     * Support for DisplayPort 1.4 version.

  2. Maksimum 4096x2160 @ 60 Hz çözünürlüğü destekleyen 1 x HDMI bağlantı noktası
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.


  (Graphics specifications may vary depending on CPU support.)
• Ses Desteği
  1. Realtek® audio codec

  2. HD Ses Desteği

  3. 2/4/5.1/7.1-kanal
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN
  1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

• Genişleme Yuvaları
  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU

  1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode

  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
     (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)


  2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1

  1. The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.


  1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
• Depolama Ara yüzü
  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs

  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs


  1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

  1. - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x2 SSDs
     - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
     - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs


  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

  1. 4 x SATA 6Gb/s konnektörü


  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB
  İşlemci

  1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  2. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support


  CPU+USB 2.0 Hub

  1. 4 x USB 2.0/1.1 ports on the back panel


  Yongaseti

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header

  2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

  3. 4 x USB 2.0/1.1 port (2 port arka panelde, 2 port dahili USB bağlantı ile)


  Chipset+USB 2.0 Hub

  1. 4 x USB 2.0/1.1 yuva dahili USB bağlantısı ile

• Dahili G/Ç Bağlantı Noktaları
  1. 1 x 24-pin ATX ana güç konektörü

  2. 1 x 8-pin ATX 12V güç konektörü

  3. 1 x CPU Fan konektörü

  4. 1 x CPU fan/water cooling pump header

  5. 2 x Sistem fan konektörü

  6. 1 x sistem fan/sıvı soğutma pompa başlığı

  7. 3 x addressable RGB Gen2 LED strip headers

  8. 1 x RGB LED şerit başlığı
