| Part No | 90NX08I1-M00UY0 |
| Sales Model Name | B5405CCA-U716512B0D |
| EAN Code | 4711636175944 |
| UPC Code | 199291175945 |
| WEEE | 1.028 |
| BASE UNIT | VSNX08I1-BU1124 |
| | |
| Operating System | Non-preinstalled OS |
| LCD cover-material | Aluminum |
| LCD cover-color | Gentle Grey |
| Top case-material | Aluminum |
| Top case-color | Gentle Grey |
| Bottom case-material | Aluminum |
| Bottom case-color | Gentle Grey |
| Military grade | US MIL-STD 810H military-grade standard |
| Panel Size | 14.0-inch |
| Backlit | LED Backlit |
| Brightness | 300nits |
| Resolution | WUXGA (1920 x 1200) 16:10 |
| Glare | Anti-glare display |
| Color gamut | NTSC: 45% |
| View angle(H/V) | 170/170 |
| Response time(Typ/Max) (ms) | 25/30 |
| Refresh rate | 60Hz |
| Contrast (Typ) | 1000:1 |
| Touch Panel | Non-touch screen |
| Screen-to-body ratio | 84 % |
| IPS-level | Wide view |
| Processor | Intel® Core™ Ultra 7 Processor 255H 2.0 GHz (24MB Cache, up to 5.1 GHz, 16 cores, 16 Threads); Intel® AI Boost NPU up to 13 TOPS |
| Neural processor | Intel® AI Boost NPU |
| Chipset | N/A |
| Discrete/Share | Share |
| Integrated GPU | Intel® Arc™ Graphics(available for Intel® Core™ Ultra H 5/7/9 with dual channel memory) |
| VRAM | N/A |
| Expansion Slot(includes used) | 2x DDR5 SO-DIMM slots |
| DIMM Memory | 16GB DDR5 SO-DIMM |
| Total System Memory | DDR5 16GB |
| Storage | 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
SSD Housing for storage expansion |
| Front-facing camera | 1080p FHD camera
With privacy shutter |
| Wireless | Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card |
| NumberPad | N/A |
| FingerPrint | FingerPrint |
| Keyboard type | Backlit Chiclet Keyboard |
| I/O ports | 2x USB 3.2 Gen 1 Type-A
2x Thunderbolt™ 4, compliant with USB4, supports display / power delivery
1x HDMI 2.1 TMDS
1x 3.5mm Combo Audio Jack
1x RJ45 Gigabit Ethernet
Micro SD card reader |
| Audio | Audio by Dirac |
| Battery | 50WHrs, 3S1P, 3-cell Li-ion |
| AC Adapter | TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal |
| Required charging power | Min: 55W
Max: 65W
*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. |
| Dimension (WxHxD) | 31.51 x 22.68 x 1.75 ~ 1.79 cm (12.41" x 8.93" x 0.69" ~ 0.70") |
| Weight (with Battery) | 1.41 kg (3.11 lbs) |
| Weight (w/o Battery) | 1.22 kg (2.69 lbs) |
| Security | Fingerprint sensor integrated with Power Key
Kensington Nano Security Slot™(6x 2.5mm)
BIOS Booting User Password Protection
BIOS Integrity Measurement Support
BIOS Self Recovery
BIOS setup user password
CSME BIOS Redundancy Assistance
Enhanced Password Strength
HDD User Password Protection and Security
Intel CSME Firmware Resilience
Intel® BIOS Guard
Intel® Boot Guard
Microsoft Security Level 2
Support Absolute Persistence 2.0 (Computrace)
Trusted Platform Module (TPM) 2.0
N/A |
| MyASUS feature | System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
AppDeals
Link to MyASUS |
| Built-in Apps | MyASUS
AI ExpertMeet (AI features need devices with 12GB RAM or more) |
| Disclaimer for Built-in Apps | Built-in Apps vary from OS SKU.
*MyASUS/McAfee don't support in Pure OS/without OS/G sku/Win SE/Windows on ARM/Linux OS (ex. Endless, Kylin, Ubuntu) |
| Reparability Index (for Belgium) | 9.5 |
| Reparability Index (for France) | 9.9 |
| Ecolabels & Compliances | EPEAT Gold with Climate+
Energy star 8.0
FSC Recycled
REACH
RoHS
TCO Certified |
| Base Warranty | 2Y Pick up/ return |
| Recommended Warranty Package Part number//Extension and/or upgrade service from base warranty | ACX11-004802NX//1Y Extension
ACX11-00482DNX//3Y Extension
ACX11-004840NX//1Y Extension; 3Y OnSite Service(Next Business Day)*upgrade
*If you would like to know the details, please contact your sales teams. |
| Battery warranty | Commercial NB B series Battery warranty follow system warranty, 4Y-5Y by WEP option. |
| Sustainable Material_Top cover(A part) | 30% PCR recycled plastic(cover or inner frame)
30% PIR recycled aluminum |
| Sustainable Material_Keyboard frame (C part) | 30% PCR recycled plastic(cover or inner frame)
30% PIR recycled aluminum |
| Sustainable Material_Bottom cover (D part) | 30% PCR recycled plastic(cover or inner frame)
30% PIR recycled aluminum |
| Sustainable Material_Battery | 30% PCR recycled plastic |
| Sustainable Material_Keyboard | 50% PCR recycled plastic cap
50% PIR recycled aluminum bracket |
| Sustainable Material_Speaker | 45% PCR + 5% OBP PCR recycled plastic enclosure |

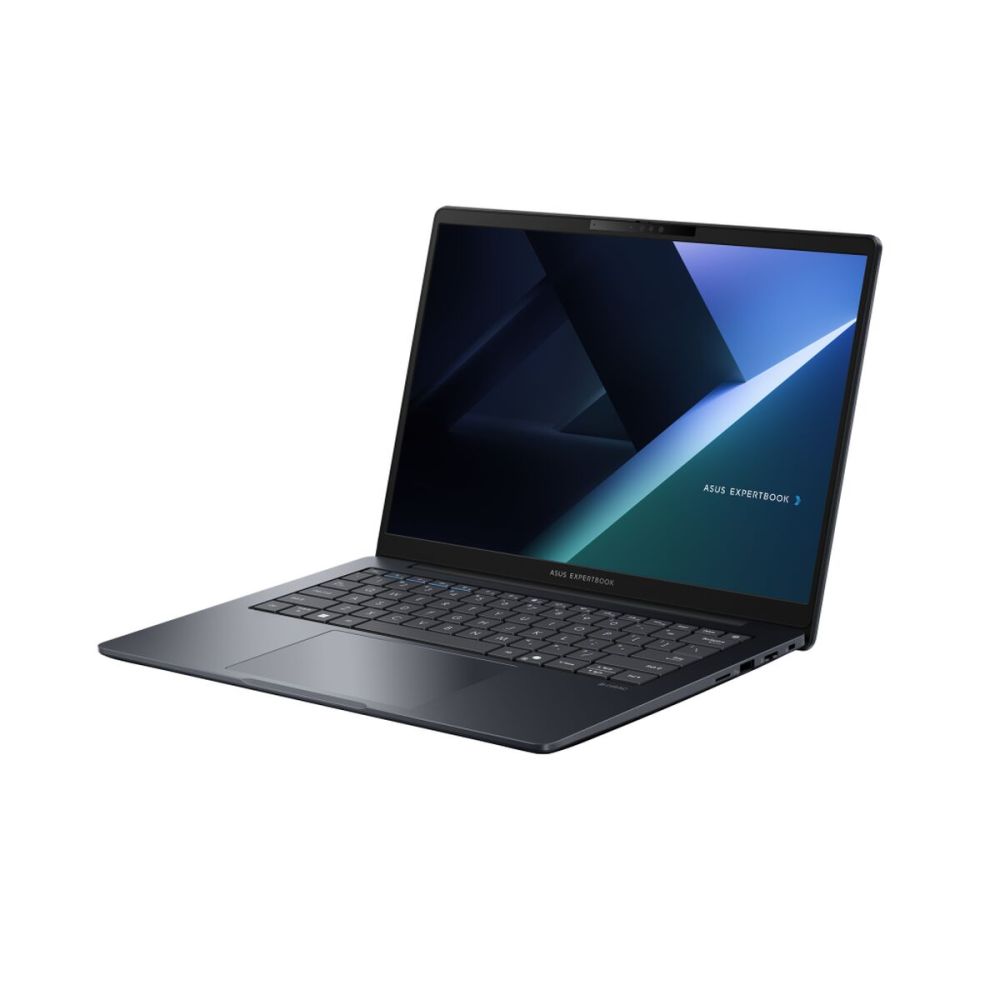

![ASUS B5405CCA-U716512B0D, ExpertBook B5, Ultra 7 255H, 14" WUXGA](https://fixida.com/63094-small_default/asus-b5405cca-u716512b0d-expertbook-b5-ultra-7-255h-14quot-wuxga-full-hd-16gb-ddr5-ram-512gb-ssd-paylasimli-ekran-karti.jpg "ASUS B5405CCA-U716512B0D, ExpertBook B5, Ultra 7 255H, 14" WUXGA")

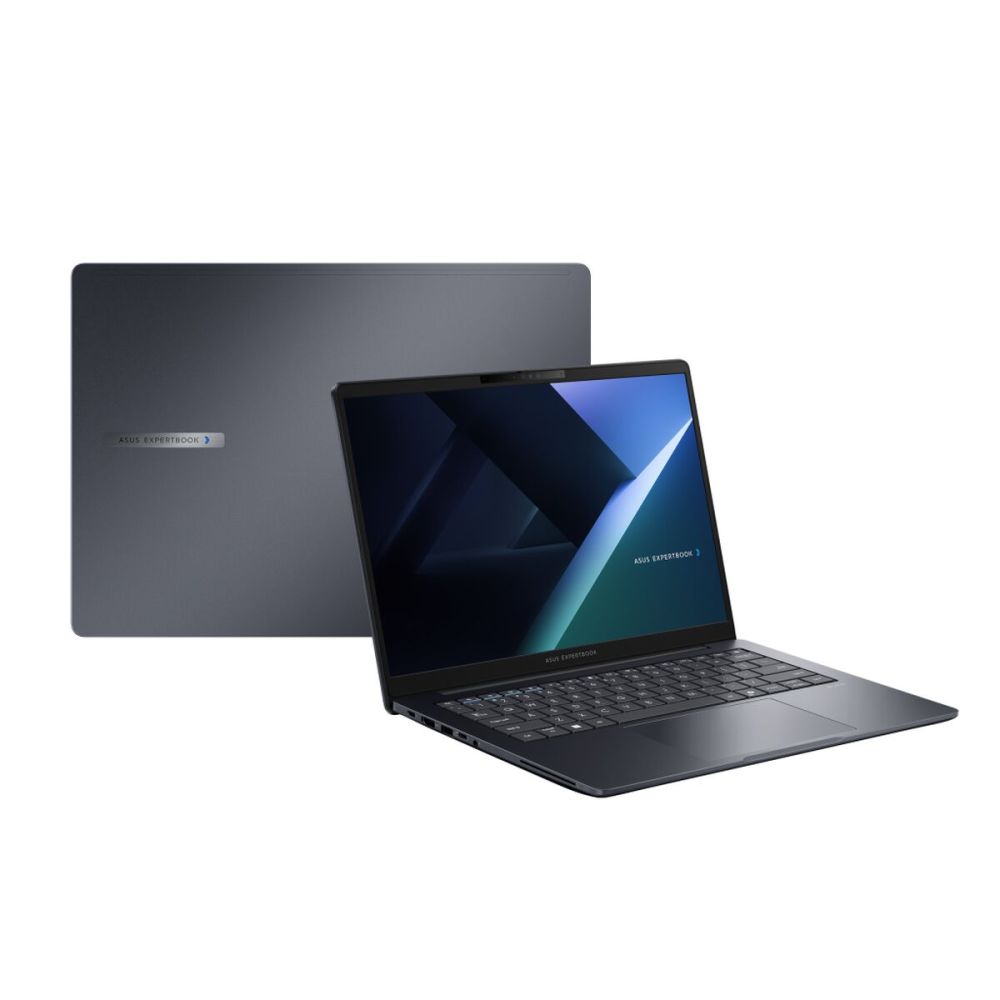

![ASUS B5405CCA-U716512B0D, ExpertBook B5, Ultra 7 255H, 14" WUXGA](https://fixida.com/63095-small_default/asus-b5405cca-u716512b0d-expertbook-b5-ultra-7-255h-14quot-wuxga-full-hd-16gb-ddr5-ram-512gb-ssd-paylasimli-ekran-karti.jpg "ASUS B5405CCA-U716512B0D, ExpertBook B5, Ultra 7 255H, 14" WUXGA")

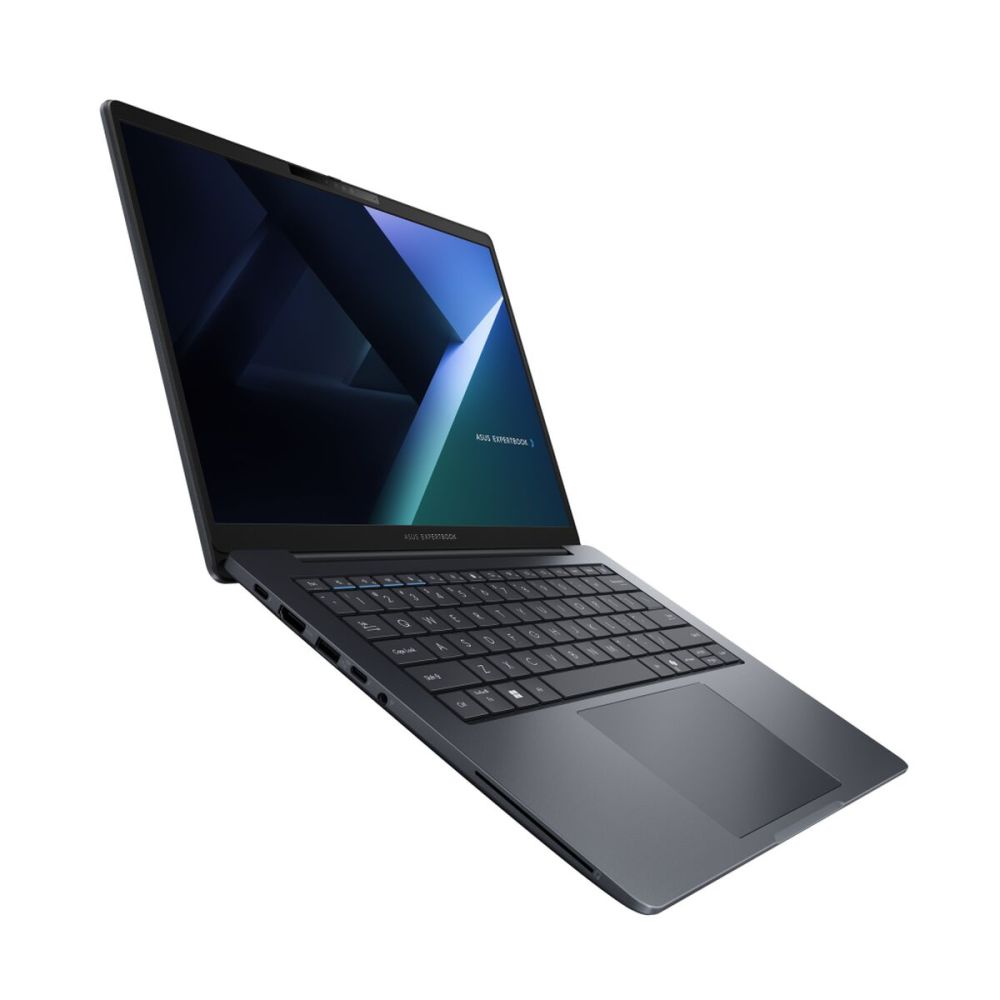

![ASUS B5405CCA-U716512B0D, ExpertBook B5, Ultra 7 255H, 14" WUXGA](https://fixida.com/63096-small_default/asus-b5405cca-u716512b0d-expertbook-b5-ultra-7-255h-14quot-wuxga-full-hd-16gb-ddr5-ram-512gb-ssd-paylasimli-ekran-karti.jpg "ASUS B5405CCA-U716512B0D, ExpertBook B5, Ultra 7 255H, 14" WUXGA")

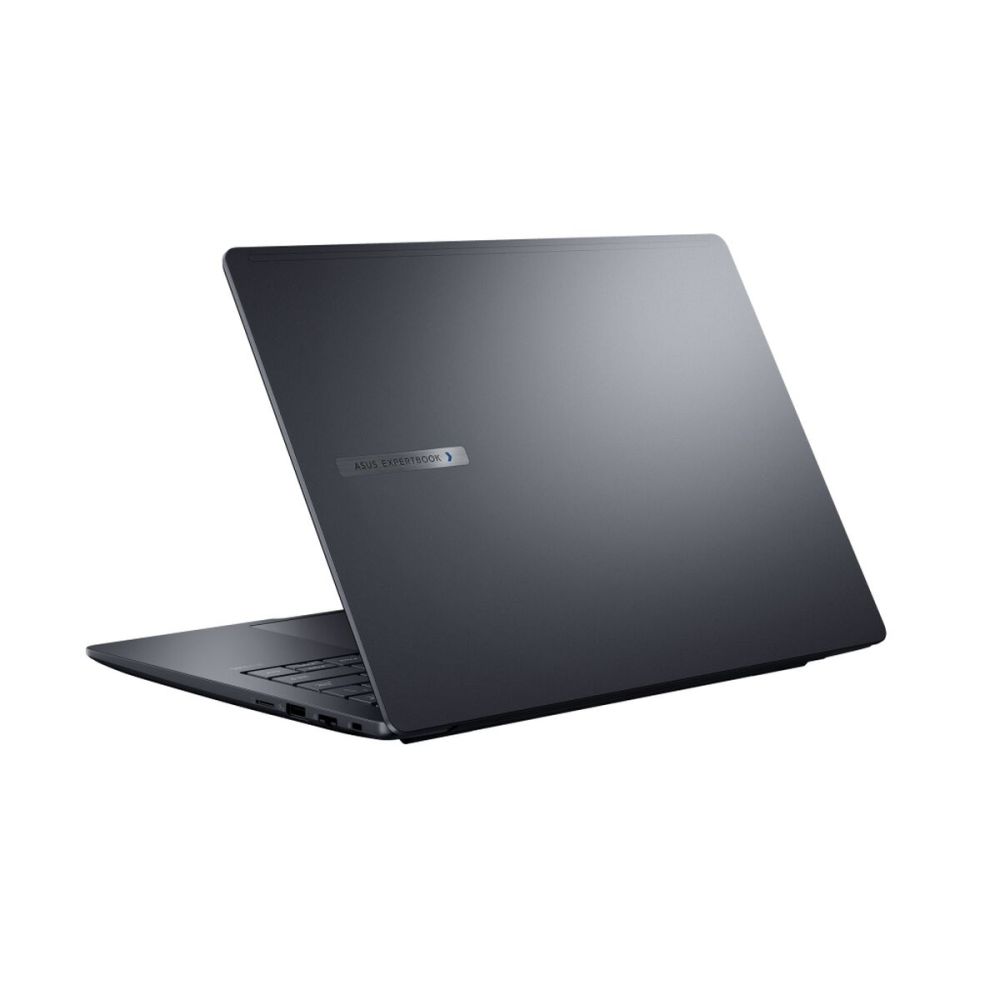

![ASUS B5405CCA-U716512B0D, ExpertBook B5, Ultra 7 255H, 14" WUXGA](https://fixida.com/63097-small_default/asus-b5405cca-u716512b0d-expertbook-b5-ultra-7-255h-14quot-wuxga-full-hd-16gb-ddr5-ram-512gb-ssd-paylasimli-ekran-karti.jpg "ASUS B5405CCA-U716512B0D, ExpertBook B5, Ultra 7 255H, 14" WUXGA")

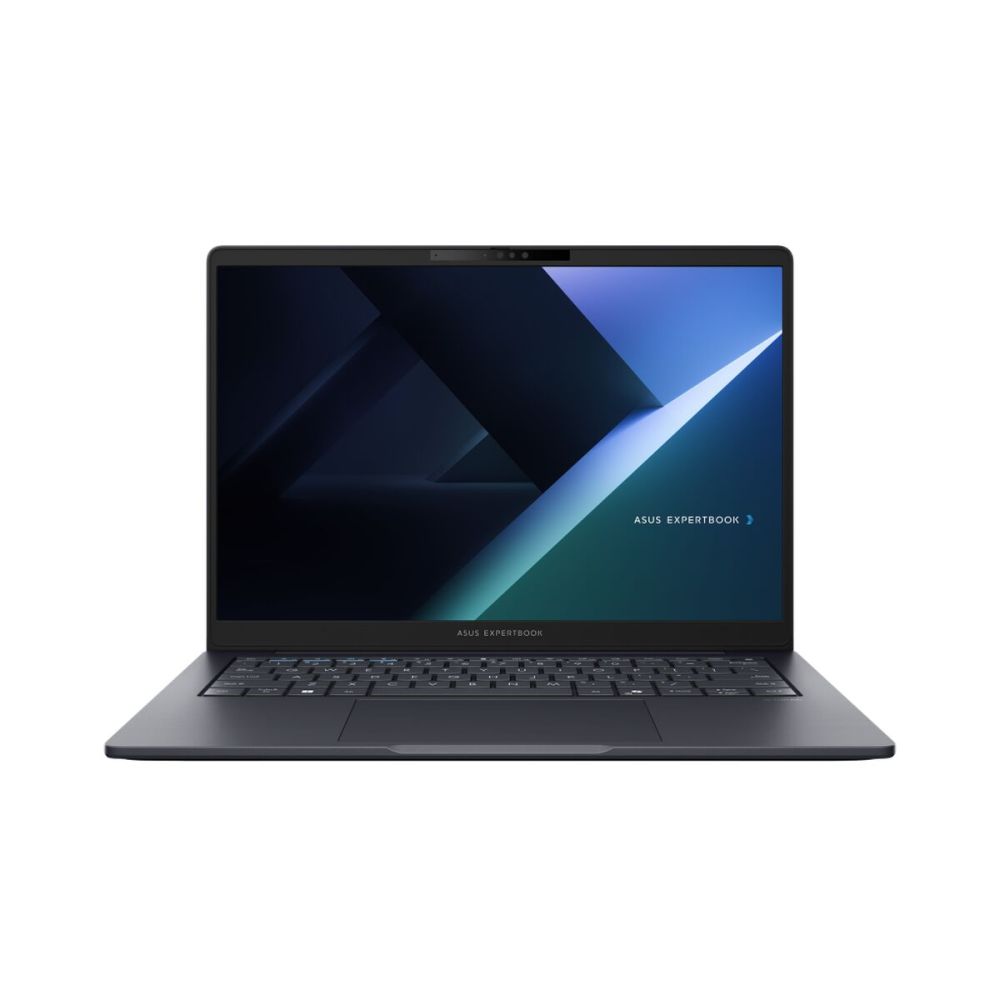

![ASUS B5405CCA-U716512B0D, ExpertBook B5, Ultra 7 255H, 14" WUXGA](https://fixida.com/63098-small_default/asus-b5405cca-u716512b0d-expertbook-b5-ultra-7-255h-14quot-wuxga-full-hd-16gb-ddr5-ram-512gb-ssd-paylasimli-ekran-karti.jpg "ASUS B5405CCA-U716512B0D, ExpertBook B5, Ultra 7 255H, 14" WUXGA")
